Multronic AutoPower is a leading provider of innovative technologies and solutions for clean energy and gas processing. We deliver advanced, efficient, and environmentally friendly gas separation, purification, and new energy solutions for the oil and gas industry.
Our solutions include:
- Hydrogen production from methanol cracking
- Hydrogen generation from natural gas
- Pressure swing adsorption (PSA) technology
- Vacuum pressure swing adsorption for oxygen production (VPSA-O₂)
- Carbon capture and storage (CCUS)
- Comprehensive utilization of coke oven gas and CNG/LNG
Multronic AutoPower also offers expertise in technology development, engineering consulting, design, project management, EPC execution, and full-process industrial solutions.
- Desired Hydrogen Purity
- Feed Gas Composition
- Production Capacity
- Operational Constraints
What we do
Based on this thorough understanding of the customer’s needs, Multronic AutoPower develops an optimal technical plan. This comprehensive plan encompasses:
Process Route Selection
Choosing the most efficient and effective PSA process configuration to achieve the desired hydrogen purity and yield.
Adsorbent Selection
Carefully selecting the most suitable adsorbent materials. The choice of adsorbent is critical for the PSA process, as it determines the efficiency of separating hydrogen from other gases. Multronic AutoPower utilizes its expertise to select adsorbents that maximize gas yield and ensure long-term, reliable performance.

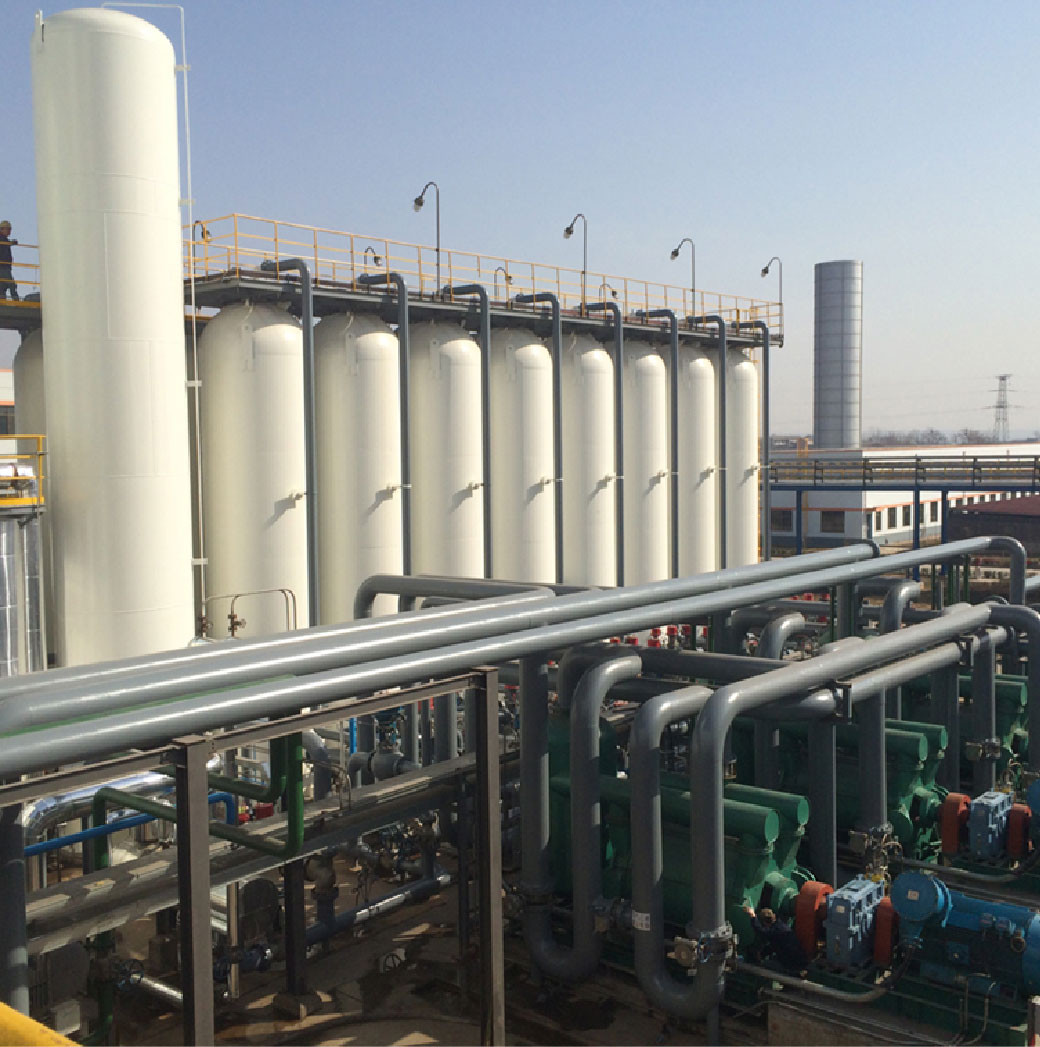

Case Study: High-Purity Hydrogen Recovery from Platforming Net Gas
This project showcases a high-performance hydrogen purification system designed to recover hydrogen from Platforming Net Gas using PSA (Pressure Swing Adsorption) technology.
Key Highlights:
- Hydrogen Flow Rate: 11,361 Nm³/h
- Feed Gas Capacity: 17,585.93 Nm³/h (with 76 mol% H₂)
- Purity Achieved: 99.9 mol% (Total)
- Operating Pressure:
- Feed (Platforming Net Gas): 38 kg/cm²g
- PSA Outlet: 37 kg/cm²g
- Recommended Feed Source: Platforming Net Gas Unit
This system delivers reliable, high-purity hydrogen for downstream processes while maximizing efficiency and throughput from existing refinery streams.
PSA Nitrogen Generation System
An efficient, fully integrated PSA system designed for high-purity, on-site nitrogen production.
General Design Parameters:
- Purity: 99.99%
- Operating Pressure: 8 bar
- Flow Capacity: 3348 m³/h (FAD)
- Compressor: Oil-free screw type, 400 kW (ZR 400)
- Dryer: Rotary drum dryer (MD1000W), Dew Point: -10°C
- Nitrogen Buffer Tank: 5 m³ (Galvanized)
- Air Receiver: 10 m³ (Galvanized)
- Filtration: Dual high-efficiency filters (99.98% particle removal)
- Control System: Optimizer 4 central controller
- Operating Temperature: 1°C to 50°C
A robust solution ideal for industrial applications requiring continuous, clean nitrogen supply with minimal maintenance.
